850nm 150m Multi Mode SFP Module 25G SFP28

Wuhan Yongxinfeng Science & Technology Co., Ltd.
Contact Now

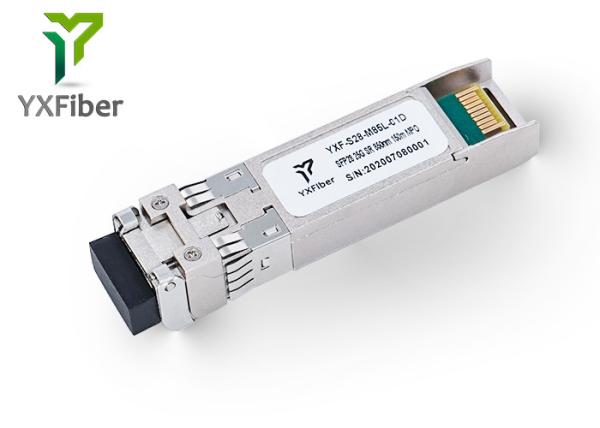

850nm 150m Multi Mode SFP Module 25G SFP28

  • 1
  • 2
  • 3

Brand Name : YXFiber

Model Number : YXF-S28-M85L-01D

Certification : CE RoHS FCC

Place of Origin : Hubei, China

MOQ : 1pcs

Price : $20 / Piece

Payment Terms : T/T, L/C, Western Union

Supply Ability : 100000pcs per month

Delivery Time : 1~3working days after payment

Packaging Details : 10pcs in Plastic tray

Type : Optical Fibers

No. of Fiber : 2.

Use : FTTX

Fiber type : Mutimode

Connector Type : MPO

Data Rate : 25Gbps

Wave length : 850nm

Distance : 150m

Selling units : single

Warranty : 1 year

Output power : -8.4~-2.4dBm

DDMI : Yes

Contact Now

25G SFP28 Duplex 100m 850nm MPO Connector

Features

l Up to 100m transmission on MMF

l Up to 25Gbps

l 850nm VCSEL laser and PIN receiver

l SFI electrical interface

l 2-wire interface for integrated Digital Diagnostic monitoring

l SFP+ MSA package with duplex LC connector

l Hot pluggable

l Very low EMI and excellent ESD protection

l +3.3V power supply

l Power consumption less than 1.0W

l Operating case temperature: 0~+70°C

Technical Parameters Descriptions Technical Parameters Descriptions
Model Number YXF-S28-M85L-01D Interface LC
Fiber type MMF Laser/Detector VCSEL/PIN
Form Factor MPO DDM Yes
Data Rate 10Gbps Output Power -8.4~-2.4dBm
Wavelength 850nm Power Supply 3.3V
Distance 150m Temperature 0~70°C
Warranty 1 Year Certificate CE,ROHS,FCC,ISO9001,SGS
